홈 /제품 소개/산업적 디젤 엔진 발전기/12KW 15KVA Perkins Engine 403D-15G Diesel Engine Generator ZDPS12-A01

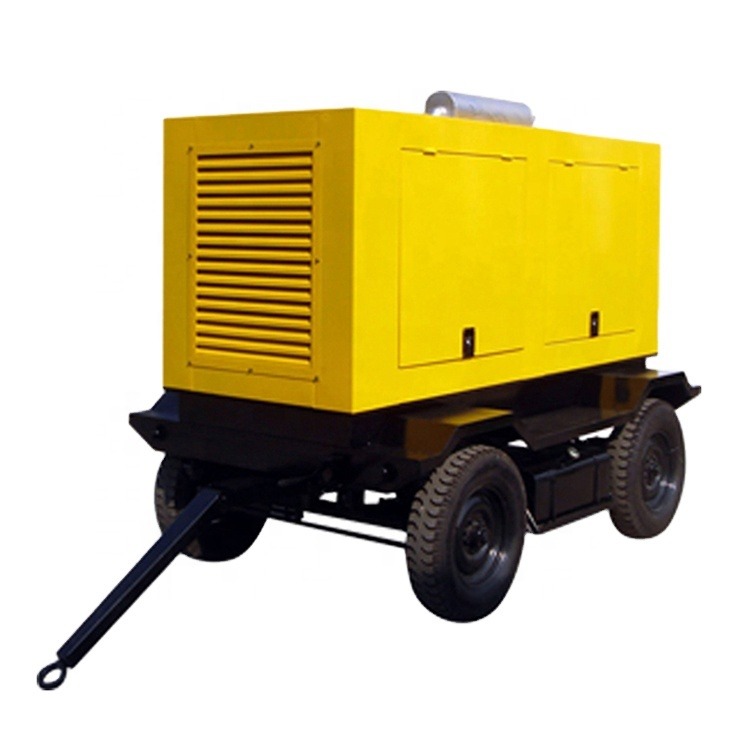

12KW 15KVA Perkins Engine 403D-15G Diesel Engine Generator ZDPS12-A01

1 Set
MOQ
$2,099.00(1 - 9 Sets) $2,088.00(10 - 99 Sets) $2,066.00(100 - 299 Sets) $2,000.00(>=300 Sets)
가격
12KW 15KVA Perkins Engine 403D-15G Diesel Engine Generator ZDPS12-A01
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 year
인증: ISO9001 ISO14001
Model Number: ZDPS12-A01
Rated Voltage: 400V/230V
Rated Current: 18A
Speed: 1500RPM/1800RPM
Frequency: 50HZ/60HZ
Engine Brand: Perkins 403D-15G Diesel Engine
Alternator: Leory-Somer/Stamford/Marathon
Control panel: Deepsea / Smartgen/Mebay
Genset type: Silent Rainproof /Mobile/Soundproof/Open/Trailer Diesel Generator
Output Type: AC One/Three Phase 220/380V 50/60Hz
Cooling system: Air Cooled / Water-cooled
Certificate: ISO9001/ISO14001
Generator Output Power: 12kw / 15kva
ATS: Auto Start Within 10S
Excitation: Selt-excite Brushless
기본 정보
인증: ISO9001 ISO14001, ISO9001/ISO14001
Model Number: ZDPS12-A01
결제 및 배송 조건
Packaging Details: Carton or Wooden Case ,also Be packaged according to customer requirements
Supply Ability: 500 Set/Sets per Month
제품 설명
12KW 15KVA Perkins 403D-15G Diesel Engine Generator
Model
ZDPS15-A1
Rated Power
12KW/15KVA
Power Factor
COSΦ=0.8
Rated Output Voltage
110V/400V/230V/450V
Rated Current
21.6A
Rated Speed
1500RPM/1800RPM
Rated Frequency
50HZ /60HZ
Startup Control Mode
Electric Starting
Noise (at 1m distance)
71db(A)
Diesel Engine Model
Perkins 403D-15G
Engine Type
In-line,3 Cylinders,4 Cycle Diesel Engine
Bore and Stroke
84*90
Compression Ratio
22.5:1
Speed Governor
Electronic Speed Governors
Fuel Consumption at 100% loading
250 g/kw/h
Alternator
Stamford,Leroy-Somer,Marathon...
Phase
1 Phase /3Phase
Regulating Mode
AVR (automatic voltage regulating)
Exciter Type
Brushless,Self-exciting,100% Copper Winding Wire
Insulation Grade
H
Protection Grade
IP23
Telephone Influence Factor
≤50
Telephone Harmonic Factor
≤2%
Regulating Rate Of Steady Voltage
≤±0.5%
Regulating Rate Of Instantaneous Voltage
≤±15%
Waving Rate Of Voltage
≤0.5%
Waveform Distortion Degree Of Voltage
≤5%
Time Of Steady Voltage
≤1.5 seconds
Regulating Rate Of Steady Frequency
≤±2%
Regulating Rate Of Instantaneous Frequency
≤±5%
Time Of Steady Frequency
≤3 seconds
Waving Rate Of Frequency
≤±0.5%
Controller
SmartGen/Mebay/Deep Sea/ComAp
Controller Parameter
● Volt
● oil pressure
● running time
● power
● current
● battery voltage
● frequency
● speed
● oil temperature
● power factor
● water temperature
●High efficient water cooled Perkins diesel engine.
●Radiator with pressure cap and drain point，Radiator 40°C max.
●Fully guarded engine-driven fan.
●Single bearing with brushless alternators (Class H, with AVR).
●Auto start control system with LCD show.
●Separate engine-driven battery charging alternator.
●12V or 24V maintenance free starter battery and connecting cables.
●Battery charger provided.
● Electric speed control
●Spin on oil and fuel filters and dry type air filter element.
● Equipped with CHINT MCCB;ABB in Option
● Equipped with industrial silencer and flexible exhaust hose.
● Main line 3P circuit breaker.
●Fully welded steel skid base with lifting holes and fork lift legs.
●Heavy duty rubber anti-vibration mountings.
●Integral fuel tank with filler cap and gauge (≤650kVA).
● Rigorous factory test wiring with IEC standard.
● Design Comply to ISO8528/GB2820
● Absorber (Anti Instant Braking)
● Wide range of optional extra features available.
● User Manual, Packing List
Description
The Perkins 403D-15G diesel engine is a powerful, reliable and economical Generating Set Diesel Engine.Designed for easiest, fastest and most economical installation. Well-balanced to produce smooth and vibration-free operation with low noise level. To maintain a controlled working temperature in cylinders and combustion chambers, the engine is equipped with piston cooling.The engine is also fitted with replaceable cylinder liners and valve seats/guides to ensure maximum durability and service life of the engine.

Features and Benefits

1) Maximised productivity by achieving key power nodes with clean rapid starting in all conditions whilst delivering impressive steady state and transient response. Options between Stage V certified products for the EU mobile genset
market and Tier 4 Final certified products for the US mobile genset market ensures flexibility for our customers tailored to their needs.
2) Perkins Engines offer a range of mechanical engines that are designed to be compact, simple to run under all conditions and easy to maintain. Some features include spin-on filters and cassette-type fuel injection pumps for ease of integration and service accessibility.
3) The Perkins mechanical engine range offers optimised fuel consumption and low oil consumption whilst meeting the Stage V and Tier 4 Final emissions standards; all delivered from a reliable mechanical engine to minimise cost of ownership.
4) Perkins engines are designed and developed with our customer in mind. Keeping service cost to a minimum ensures low periodic running costs. This is achieved through 500 hour service intervals for oil and fuel as standard under all operating conditions.
5) The long productive life of our products is supported through the Perkins 12 month warranty as standard for prime power applications, and the 1500 hour or two year emissions warranty.
6) Perkins takes pride in manufacturing all products globally to the same high quality standard. All of our products are manufactured in world class facilities to ensure highest quality for your peace of mind.
