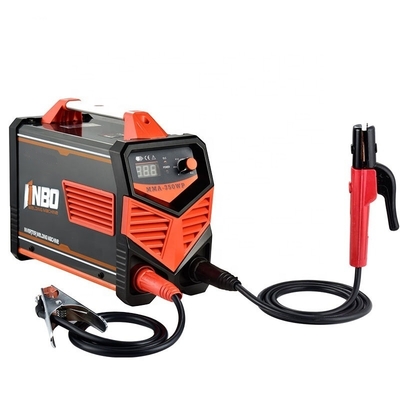

| Model | MMA-200WP | MMA-250WP | MMA-300WP |
| Type | waterproof welding machine | waterproof welding machine | waterproof welding machine |
| AC Input Voltage(V) | AC 220V | AC 220V | AC 220V |
| Rated Input Power Capacity(KVA) | 5.7 | 6.6 | 8.8 |
| Input Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Non-load Voltage(V) | 80 | 80 | 80 |
| Output current range(A) | 20-200 | 20-250 | 20-300 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Electrode diameter(mm) | 1.6-3.2 | 1.6-4.0 | 1.6-5.0 |
| Quick joint Size | 35-50mm | 35-50mm | 35-50mm |
| N.W./G.W.(kg) | 5.65/7.45 | 5.85/7.65 | 6.05/7.85 |
| Machine Size(LxWxH mm) | 340*150*220 | 340*150*220 | 340*150*220 |
| Package Dimension(LxWxH mm) |
408*210*310 color box+foam |
408*210*310 color box+foam |
408*210*310 color box+foam |
|
395*190*330 honeycomb box |
395*190*330 honeycomb box |
395*190*330 honeycomb box |
|
| Accessories | 1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual |
1.8m 16mm 300A holder 1.2m 16mm 300A clamp mask, brush, manual |
1.8m 16mm 300A holder 1.2m 16mm 300A clamp mask, brush, manual |
| 담당자 : | Shen |
|---|
