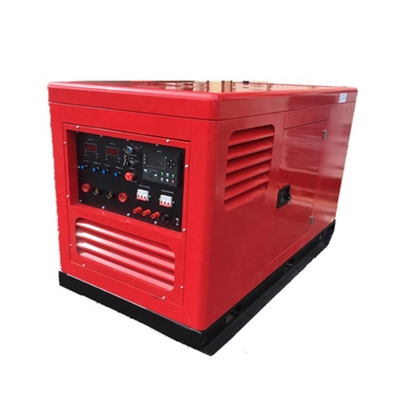

Best Price China Guangzhou 300Amp 500Amp engine driven welding machine Diesel welder generator for sale
1.We Can offer both single position welding machine with MMA/TIG/FCAW function and dual positions welding machine whith MMA plus FCAW function, convenient for customer's choice
2.FCAW meets "filling & covering"welding process,fast,effective,and timesaving,can match Lincoln/Miller wire feeder.
Strong auxiliary power:16KW output for three-phase, 6KW output for single-phase
3.Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
4.Owns current/voltage parameter preset function,the matched wire feeder can show the preset/real current, also adjust welding current,easy to operate.
| Welding Processes | MMA | TIG | FCAW | ||||||
| Open Circuit Voltage (V) | 75 | 75 | 75 | ||||||
| Current Range (A) | 30-500 | 30-500 | 30-500 | ||||||
| Welding Current (A) | 387 | 430 | 500 | 387 | 430 | 500 | 387 | 430 | 500 |
| Welding Voltage (V) | 35.5 | 37.2 | 40 | 25.5 | 27.2 | 30 | 33.3 | 35.5 | 39 |
| Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
| External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic | ||||||
| Generator output | |||||||||
| Power | 16Kw | ||||||||
| Excitation Type | AVR Brushless Excitation | ||||||||
| Frequency | 50Hz | ||||||||
| Phase | Three Phase | Single Phase | |||||||
| Output Voltage/Power | AC 400V/20Kw | AC 230V/6Kw | |||||||
| Engine | |||||||||
| Type | 4 stroke , direct injection , 4 cylinders | ||||||||
| Fuel | Diesel | ||||||||
| Rated Power | 26Kw | ||||||||
| Rated Speed | 1500 RPM | ||||||||
| Low Temperature | Pre-heated Start | ||||||||
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
| Fuel Capacity | 60L | ||||||||
| Cooling Method | Water-cooled | ||||||||
| Fuel Consumption | 5.6L/hr | ||||||||
| Complete appliance | |||||||||
| Weight | 690kg | ||||||||
| Dimension(mm) | 1480×850×1095 | ||||||||
| Protection Class | IP23 | ||||||||
